BALL VALVES

MULTIPORT TYPE

 CAT NO. : PVT / MPBV / 018

S.No.
PART
MATERIAL OF CONSTRUCTION
1
Body
C.S. / SS304 / SS316
2
Adopter
C.S. / SS304 / SS316
3
Ball
SS304 / SS316
4
Stem
SS304 / SS316
5
Stopper
SS304
6
Handle
MS / SS
7
Nut
MS / SS
8
Ball Seat
Teflon PTFE
9
Adopter seat
Teflon PTFE
10
Stem seat
Teflon PTFE
11
Gland seat
Teflon PTFE

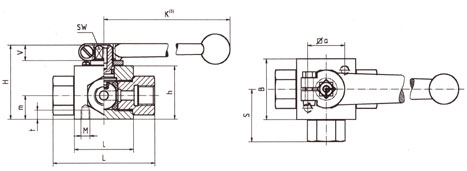

DIN  2353 - Heavy Series
Sizes ->
4
6
10
15
20
25
32
LW= BORE
5
6
10
15
20
25
32
L = F/F
73
73
80
90
109
120
146
L = BODY P/A
40
40
43
48
62
66
81
B = BODY R/A
40
40
45
45
60
70
80
H = HEIGHT
49
49
57
57
78
88
101
t = W.T.
6
6
10
10
10
10
12
S = C/END
36.5
36.5
41
45
59
63
77

DETAILS
MOC (body)
CS / SS304 / SS316
MOC (parts) SS304 / SS316
End Conn. Screwed / Flanged / TC / Tube Connection
TYPE 3 Way / 4 Way
Flow Area L' Port / T' Port / X' Port
Ratings 150# / 300# / 800#
On Request High temp. / Gear op. / 180° Rotary - 90° Rotary Actuatory operated.

T E S T    P R E S S U R E - kg/cm2
Hydrostatic
Pneumatic
Rating
Body
Seat
Seat
150#
30
01
7
300#
77
55
7
800#
210
154
7


CI = Cast Iron  CS = Cast Steel  MS = Mild Steel  SS = Stainless Steel(304/316)  GM = Gun metal(copper alloy)
